文件服务上传慢排查
2026-02-13/2026-02-13
情况说明：文件上传出现大量上传失败，查看文件模块日志未报错，应该是上传时间超时，导致前端展示上传失败
首先服务新增日志，然后部署上新的服务，打印日志如下：
10:09:57.551 [http-nio-9300-exec-1] INFO c.r.f.c.SysFileController - [uploadBizFile,91] - ========== 开始上传文件 ==========
10:10:04.547 [http-nio-9300-exec-1] INFO c.r.f.c.SysFileController - [uploadBizFile,95] - 文件存储耗时: 6995ms
10:10:04.954 [http-nio-9300-exec-1] INFO c.r.f.c.SysFileController - [uploadBizFile,105] - 数据库保存耗时: 406ms
10:10:04.955 [http-nio-9300-exec-1] INFO c.r.f.c.SysFileController - [uploadBizFile,114] - 文件上传总耗时: 7404ms, URL: /file/statics/2026/01/06/pexels-johannes-plenio-1477832_20260106100957A001.jpg
可以看到，瓶颈在于文件上传，非数据库
查看文件上传代码：
public static final String upload(String baseDir, MultipartFile file, String[] allowedExtension)
throws FileSizeLimitExceededException, IOException, FileNameLengthLimitExceededException, InvalidExtensionException
{
int fileNamelength = Objects.requireNonNull(file.getOriginalFilename()).length();
if (fileNamelength > FileUploadUtils.DEFAULT_FILE_NAME_LENGTH)
{ throw new FileNameLengthLimitExceededException(FileUploadUtils.DEFAULT_FILE_NAME_LENGTH); }
assertAllowed(file, allowedExtension);
String fileName = extractFilename(file);
String absPath = getAbsoluteFile(baseDir, fileName).getAbsolutePath();
file.transferTo(Paths.get(absPath));
return getPathFileName(fileName);
}
代码使用了file.transferTo(Paths.get(absPath));
此操作是阻塞式 IO，单线程写磁盘，且当前 Tomcat 工作线程同步等待
并发一上来tomcat工作线程被打满，上传本来就慢，后续请求也进不来，直接造成服务雪崩
首先优化的点是采用显示的Buffered Stream（避免二次拷贝）
try (
InputStream in = file.getInputStream();
OutputStream out = new BufferedOutputStream(
Files.newOutputStream(Paths.get(absPath),
StandardOpenOption.CREATE_NEW),
1024 * 1024 // 1MB buffer
)
) {
IOUtils.copy(in, out);
}
- 避免
transferTo的隐式逻辑 - 控制 buffer，减少系统调用
- 实测在 NFS 上能下降 30%~50%
但是代码上线后仍然报错，后续意识到文件存储是挂载在nfs上的，文件实际存储链路
客户端
↓
Tomcat 接收 multipart（可能已落一次临时文件）
↓
http-nio-exec-* 线程
↓
transferTo()
↓
Linux VFS
↓
NFS Client
↓
网络
↓
NFS Server 写盘 + ACK
↓
ACK 返回后，Java 方法才结束

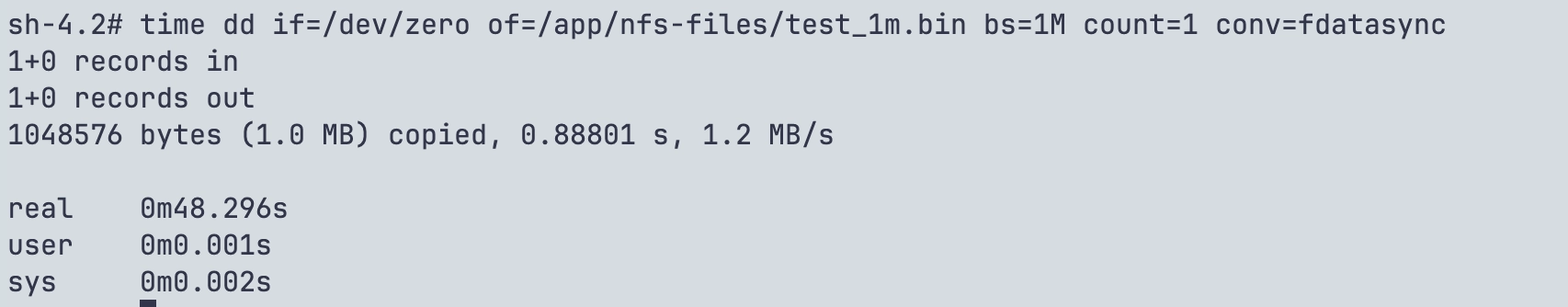

nfs存在一次网络+磁盘写入，非本机io，然后进行了一次测试
可以看到，本地写入磁盘1M的数据都要49s，所以肯定是nfs挂载出现了问题
我们首先在群里反馈了该问题，然后服务也同步进行了优化
修改方案为
落本地盘，再“后台同步”到 NFS 的方案，再加上 异步 + 限流
http的上传请求，只写入本地盘，该上传可做到毫秒级，然后再用异步线程去处理文件同步nfs挂载盘，相关代码：
nfs异步上传服务
package com.ruoyi.file.service;
import com.baomidou.mybatisplus.core.conditions.update.UpdateWrapper;
import com.ruoyi.file.config.NfsAsyncEnum;
import com.ruoyi.file.repository.service.FileLocalToNfsMetaService;
import com.ruoyi.file.utils.FileUploadUtils;
import com.ruoyi.system.api.domain.FileLocalToNfsMeta;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.io.IOUtils;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.scheduling.annotation.Async;
import org.springframework.stereotype.Service;
import javax.annotation.Resource;
import java.io.BufferedOutputStream;
import java.io.InputStream;
import java.io.OutputStream;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import java.nio.file.StandardOpenOption;
import java.time.LocalDateTime;
/**
* @author buguniao
*/
@Slf4j
@Service
public class NfsUploadService {
private static final int BUFFER_SIZE = 4 * 1024 * 1024;
@Value("${file.local-tmp-dir}")
private String localTmpDir;
@Value("${file.path}")
private String nfsPath;
@Resource
private FileLocalToNfsMetaService fileLocalToNfsMetaService;
@Async("nfsUploadExecutor")
public void uploadToNfs(Integer fileId) {
FileLocalToNfsMeta byId = fileLocalToNfsMetaService.getById(fileId);
String relativePath = byId.getRelativePath();
relativePath = FileUploadUtils.getFileUploadPath(relativePath);
Path local = Paths.get(
localTmpDir, relativePath);
Path nfs = Paths.get(
nfsPath, relativePath);
try {
Files.createDirectories(nfs.getParent());
try (InputStream in = Files.newInputStream(local);
OutputStream out = new BufferedOutputStream(
Files.newOutputStream(
nfs, StandardOpenOption.CREATE_NEW),
BUFFER_SIZE)) {
IOUtils.copyLarge(in, out);
}
Files.deleteIfExists(local);
UpdateWrapper<FileLocalToNfsMeta> success = new UpdateWrapper<FileLocalToNfsMeta>()
.set("status", NfsAsyncEnum.SUCCESS.getCode())
.set("update_time", LocalDateTime.now())
.eq("file_id", fileId);
fileLocalToNfsMetaService.update(success);
} catch (Exception e) {
log.error("NFS 上传失败: {}", relativePath, e);
UpdateWrapper<FileLocalToNfsMeta> fail = new UpdateWrapper<FileLocalToNfsMeta>()
.set("status", NfsAsyncEnum.SUCCESS.getCode())
.set("last_error", e.getMessage())
.set("retry_count", byId.getRetryCount() == null ? 1 : byId.getRetryCount() + 1)
.set("update_time", LocalDateTime.now())
.eq("relative_path", relativePath);
fileLocalToNfsMetaService.update(fail);
}
}
}
线程池配置
package com.ruoyi.file.config;
import com.google.common.util.concurrent.ThreadFactoryBuilder;
import lombok.extern.slf4j.Slf4j;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.scheduling.concurrent.ThreadPoolTaskExecutor;
import java.util.concurrent.*;
/**
* @author buguniao
*/
@Configuration
@Slf4j
public class ThreadPoolConfig {
@Bean("nfsUploadExecutor")
public Executor nfsUploadExecutor() {
ThreadPoolTaskExecutor executor = new ThreadPoolTaskExecutor();
executor.setCorePoolSize(2);
executor.setMaxPoolSize(4);
executor.setQueueCapacity(500);
executor.setThreadNamePrefix("nfs-upload-");
executor.setRejectedExecutionHandler(
new ThreadPoolExecutor.CallerRunsPolicy()
);
executor.initialize();
return executor;
}
}
本地临时文件清理任务
package com.ruoyi.file.service;
import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.baomidou.mybatisplus.core.conditions.update.UpdateWrapper;
import com.ruoyi.file.config.NfsAsyncEnum;
import com.ruoyi.file.repository.service.FileLocalToNfsMetaService;
import com.ruoyi.file.utils.FileUploadUtils;
import com.ruoyi.system.api.domain.FileLocalToNfsMeta;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.io.FileUtils;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Component;
import javax.annotation.Resource;
import java.io.File;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import java.nio.file.attribute.FileTime;
import java.time.Duration;
import java.time.Instant;
import java.time.LocalDateTime;
import java.util.List;
import java.util.UUID;
import java.util.stream.Stream;
/**
* @author buguniao
* 本地临时文件 TTL 清理（定时任务）
*/
@Component
@Slf4j
public class LocalTmpFileCleanJob {
@Resource
private FileLocalToNfsMetaService fileLocalToNfsMetaService;
@Resource
private NfsUploadService nfsUploadService;
@Value("${file.local-tmp-dir}")
private String localTmpDir;
/**
* 每十分钟扫描一次数据库清除临时文件
*/
@Scheduled(cron = "0 */10 * * * ?")
public void clean() {
String batchId = UUID.randomUUID().toString();
log.info("开始文件清理，批次号{},时间{}", batchId, LocalDateTime.now());
LocalDateTime now = LocalDateTime.now();
// 1. 清理已完成但未删除的本地文件
deleteByStatus(NfsAsyncEnum.SUCCESS.getCode(), now.minusMinutes(10));
// 2. 清理失败且超过 TTL 的文件
deleteByStatus(NfsAsyncEnum.FAIL.getCode(), now.minusHours(48));
log.info("文件清理结束，批次号{},时间{}", batchId, LocalDateTime.now());
}
/**
* 每日三点清除孤儿文件
*/
@Scheduled(cron = "0 0 3 * * ?")
public void cleanOrphanFiles() {
Path baseDir = Paths.get(localTmpDir);
try (Stream<Path> files = Files.walk(baseDir)) {
files
.filter(Files::isRegularFile)
.forEach(this::tryDeleteOrphan);
} catch (IOException e) {
log.error("扫描本地文件失败", e);
}
}
@Scheduled(cron = "0 */30 * * * ?")
public void retryNfsUpload() {
// 1、取同步失败的数据
LambdaQueryWrapper<FileLocalToNfsMeta> queryWrapper = new LambdaQueryWrapper<>();
queryWrapper.eq(FileLocalToNfsMeta::getStatus, NfsAsyncEnum.FAIL.getCode())
.orderByDesc(FileLocalToNfsMeta::getUpdateTime)
.last("limit 20");
List<FileLocalToNfsMeta> retryList = fileLocalToNfsMetaService.list(queryWrapper);
for (FileLocalToNfsMeta meta : retryList) {
nfsUploadService.uploadToNfs(meta.getFileId());
log.info("重新同步本地文件{}", meta.getRelativePath());
}
}
private void deleteByStatus(String status, LocalDateTime expireTime) {
LambdaQueryWrapper<FileLocalToNfsMeta> lambdaQueryWrapper = new LambdaQueryWrapper<>();
lambdaQueryWrapper.eq(FileLocalToNfsMeta::getStatus, status)
.le(FileLocalToNfsMeta::getUpdateTime, expireTime)
.last("limit 100");
List<FileLocalToNfsMeta> list = fileLocalToNfsMetaService.list(lambdaQueryWrapper);
for (FileLocalToNfsMeta meta : list) {
try {
String filePath = FileUploadUtils.getFileUploadPath(meta.getRelativePath());
String tmpPath = localTmpDir + "/" + filePath;
Path path = Paths.get(tmpPath);
if (Files.exists(path)) {
Files.delete(path);
}
log.info("临时文件{}已删除", tmpPath);
UpdateWrapper<FileLocalToNfsMeta> updateWrapper = new UpdateWrapper<>();
updateWrapper.set("status", NfsAsyncEnum.DELETE_SUCCESS.getCode())
.eq("file_id", meta.getFileId());
fileLocalToNfsMetaService.update(updateWrapper);
} catch (Exception e) {
log.warn("本地文件清理失败 fileId={}", meta.getFileId(), e);
}
}
}
private void tryDeleteOrphan(Path path) {
try {
FileTime time = Files.getLastModifiedTime(path);
long hours =
Duration.between(
time.toInstant(),
Instant.now()
).toHours();
if (hours > 72) {
Files.deleteIfExists(path);
log.warn("兜底清理孤儿文件 {}", path);
}
} catch (Exception ignored) {
}
}
}
优化上线后，控制到文件上传时间在100ms内，跟踪服务未出现上传异常
后续群内通知nfs盘异常已修复，同步测试后读写nfs盘速率已恢复正常，但此方案也保留下来了。
